Q Power 0-24V 3000mA Transformer

Q Power transformer with 110-220V AC input and 0-24V 3000mA secondary output for compatible 24V low-voltage equipment.

Ask for Price Back to Power Supplies
Q Power 0-24V 3000mA Transformer
Product Overview

Product details

The Q Power 0-24V 3000mA Transformer is designed for compatible low-voltage equipment that requires a 24V transformer output.

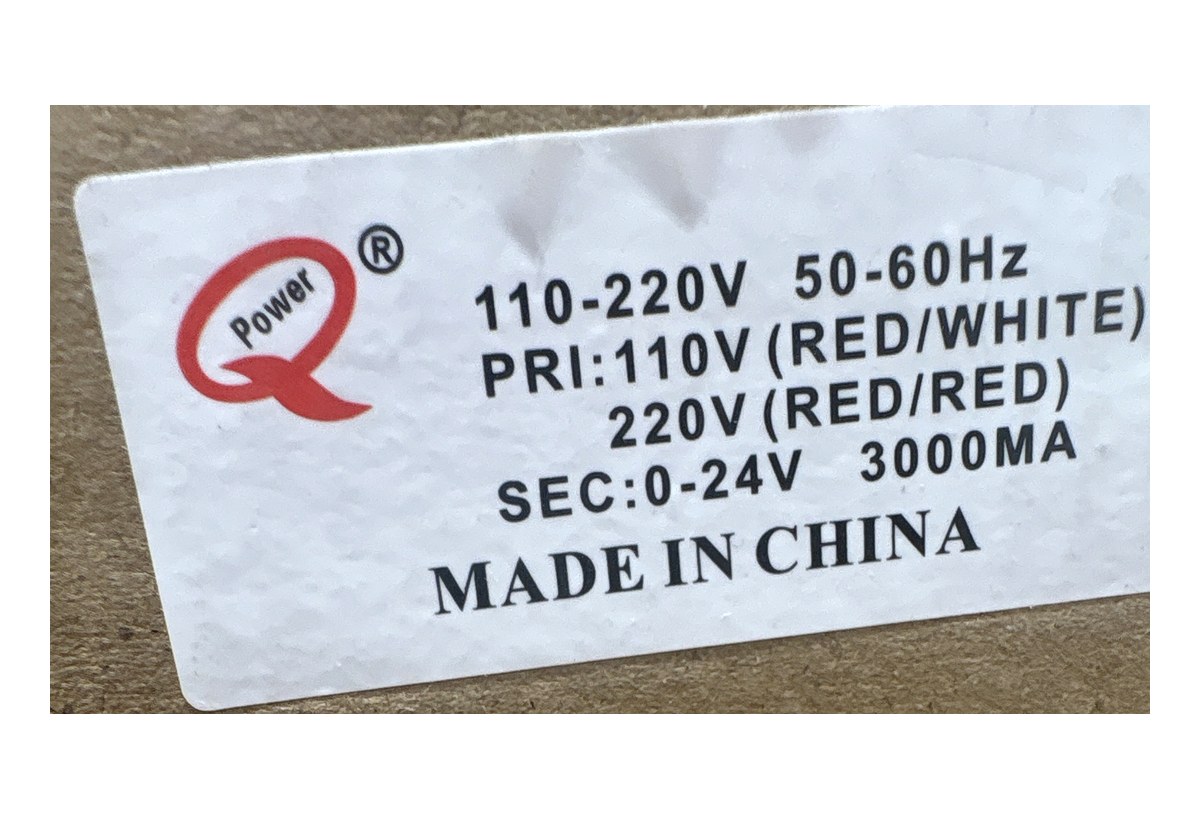

The label specifies 110-220V AC 50-60Hz input with primary wiring options for 110V and 220V, and a 0-24V secondary output rated at 3000mA.

This transformer is suitable for selected access control, alarm, bell, relay and low-voltage control applications where a 24V AC transformer supply is required.

Key Features

Key product features

  • Q Power transformer for 24V low-voltage systems
  • 110-220V AC input, 50-60Hz
  • Primary wiring: 110V red/white, 220V red/red
  • 0-24V secondary output
  • 3000mA rated current
  • Approximate 72VA output rating based on label
  • Suitable for compatible security and control equipment
Applications

Where it is used

Access Control Accessories Alarm Equipment Low-Voltage Control Panels Relay Systems Bell and Signaling Circuits Service Replacement Commercial Installations
Technical Specifications

Product specifications

BrandQ Power
Product TypeStep-down transformer
Input Voltage110-220V AC
Frequency50-60Hz
Primary Wiring110V red/white, 220V red/red
Secondary Output0-24V
Output Current3000mA / 3A
Approx. Rating24V x 3A = 72VA, based on label
OriginMade in China
Selection Note

Confirm before installation

Confirm that the connected device requires 24V transformer AC output before using this product. It is not a regulated 24V DC adapter.
