Q Power 12V-0-12V 2000mA Transformer

Q Power center-tapped transformer with 110-220V AC input and 12V-0-12V 2000mA secondary output for compatible low-voltage systems.

Ask for Price Back to Power Supplies
Q Power 12V-0-12V 2000mA Transformer
Product Overview

Product details

The Q Power 12V-0-12V 2000mA Transformer is a lower-current center-tapped transformer for compatible access control, alarm and low-voltage electronics equipment.

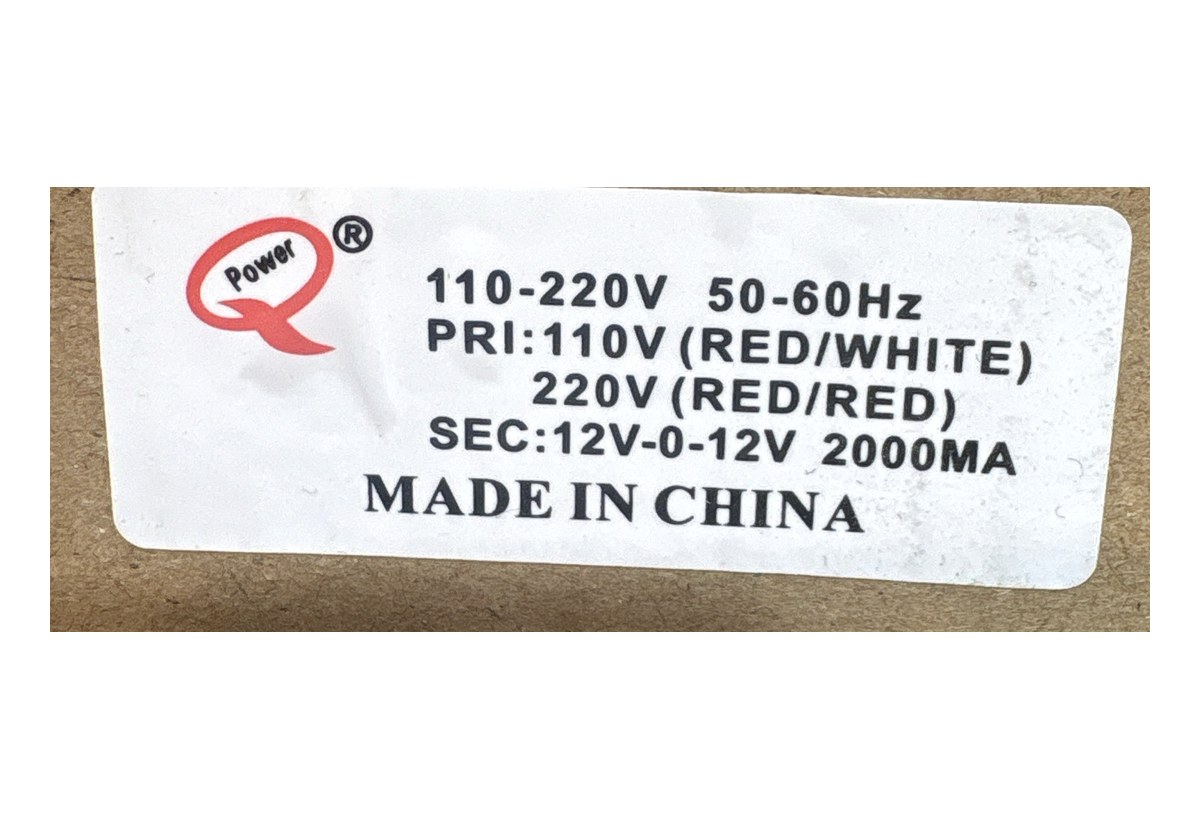

The label specifies 110-220V AC 50-60Hz input with primary wiring options for 110V and 220V, and a 12V-0-12V secondary output rated at 2000mA.

This variant should be selected when the connected device requires 12V-0-12V transformer output within a 2A current rating.

Key Features

Key product features

  • Q Power transformer for low-voltage equipment
  • 110-220V AC input, 50-60Hz
  • Primary wiring: 110V red/white, 220V red/red
  • 12V-0-12V center-tapped secondary output
  • 2000mA rated current
  • Suitable for compatible access control and alarm accessories
  • Compact replacement transformer option
Applications

Where it is used

Security Alarm Systems Access Control Accessories Low-Voltage Panels Door Control Equipment Service Replacement Electronics Projects Commercial Installations
Technical Specifications

Product specifications

BrandQ Power
Product TypeStep-down transformer
Input Voltage110-220V AC
Frequency50-60Hz
Primary Wiring110V red/white, 220V red/red
Secondary Output12V-0-12V
Output Current2000mA / 2A
Approx. RatingUp to 48VA across full 24V secondary, based on label
OriginMade in China
Selection Note

Confirm before installation

Use this 2A transformer only where the connected equipment specifies the same transformer output. Do not substitute it for DC power supplies unless the equipment supports that input.
