Power Supplies

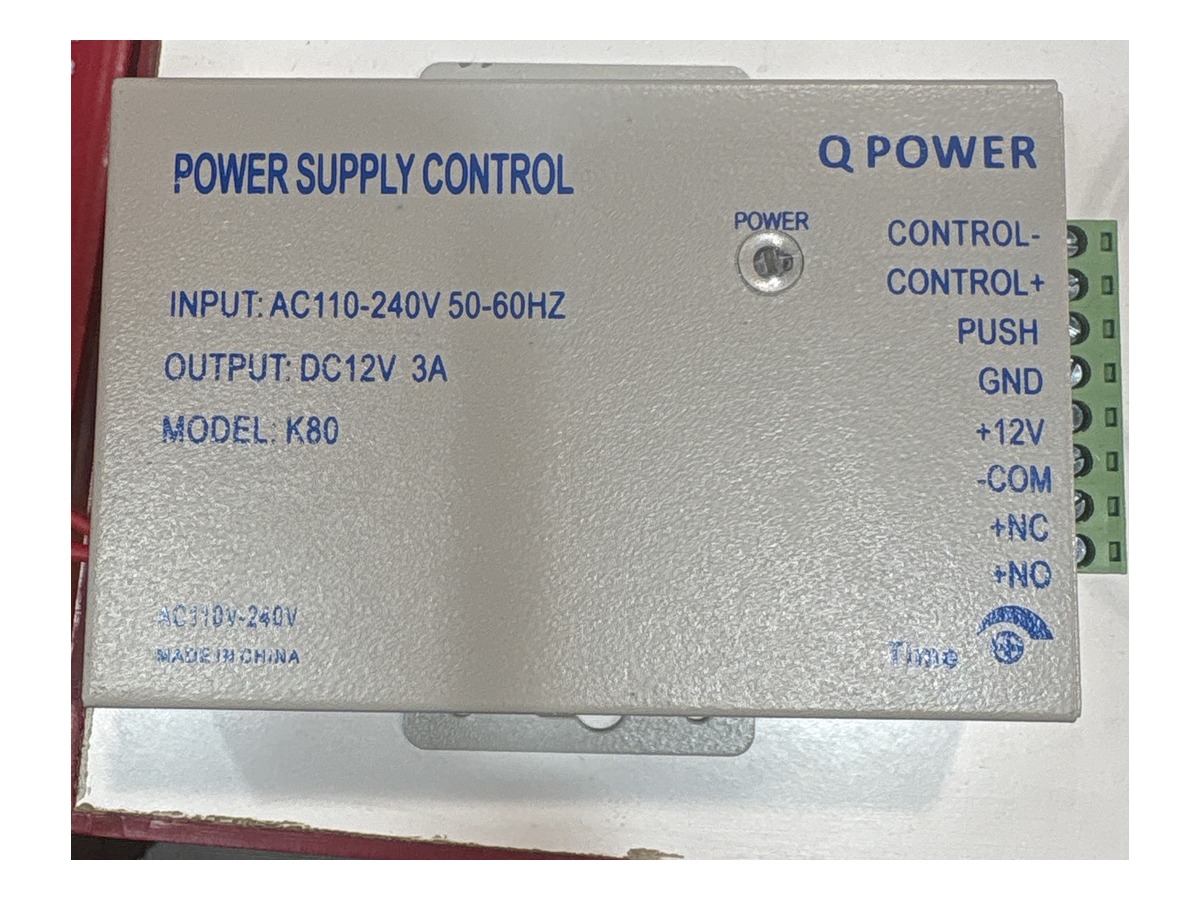

Q Power K80 12V 3A Access Control Power Supply

Q Power K80 access control power supply controller with AC 110-240V input and DC 12V 3A output for door access systems.

Ask for Price Back to Power Supplies
Q Power K80 12V 3A Access Control Power Supply
Product Overview

Product details

The Q Power K80 Access Control Power Supply is designed for door access control installations that need a compact 12V DC controller with lock relay terminals.

The unit provides DC 12V 3A output for access-control devices and includes connection terminals for controller input, push exit input, ground, +12V and lock output wiring.

It is suitable for powering access control panels, card readers, exit buttons, electric strikes, small magnetic locks and supporting door control accessories within its rated load.

Key Features

Key product features

  • Model K80 access control power supply controller
  • AC 110-240V input, 50-60Hz
  • DC 12V 3A output
  • Calculated output load of 36W
  • Control input and push exit terminals
  • Lock output terminals for COM, NC and NO wiring
  • Wall-mount metal enclosure
  • Suitable for access control door installations
Applications

Where it is used

Access Control Panels RFID Card Readers Exit Buttons Electric Strikes Small Magnetic Locks Door Controllers Office Entrances Retail Shops Commercial Buildings
Technical Specifications

Product specifications

BrandQ Power
ModelK80
Product TypeAccess control power supply controller
Input VoltageAC 110-240V
Frequency50-60Hz
Output VoltageDC 12V
Output Current3A
Calculated Load12V x 3A = 36W electrical output
TerminalsCONTROL-, CONTROL+, PUSH, GND, +12V, COM, NC, NO
InstallationWall mount
ApplicationAccess control door systems
Selection Note

Confirm before installation

Use this 12V 3A controller only within its rated load. Add the current draw of the lock, reader, exit device and controller before selecting the power supply.
